[Product Information
Product Name: APVC Trapezoidal Wave Tile 1130
Thickness: 1.5mm~3.0mm (interval thickness can be customized)
Length: customized according to customer requirements
Width: 1130mm
Wave height: 28mm
Wave Pitch: 210mm
Color: white, blue, green, red, gray
Characteristics: excellent weather resistance, corrosion resistance, good sound insulation, insulation, heat insulation.

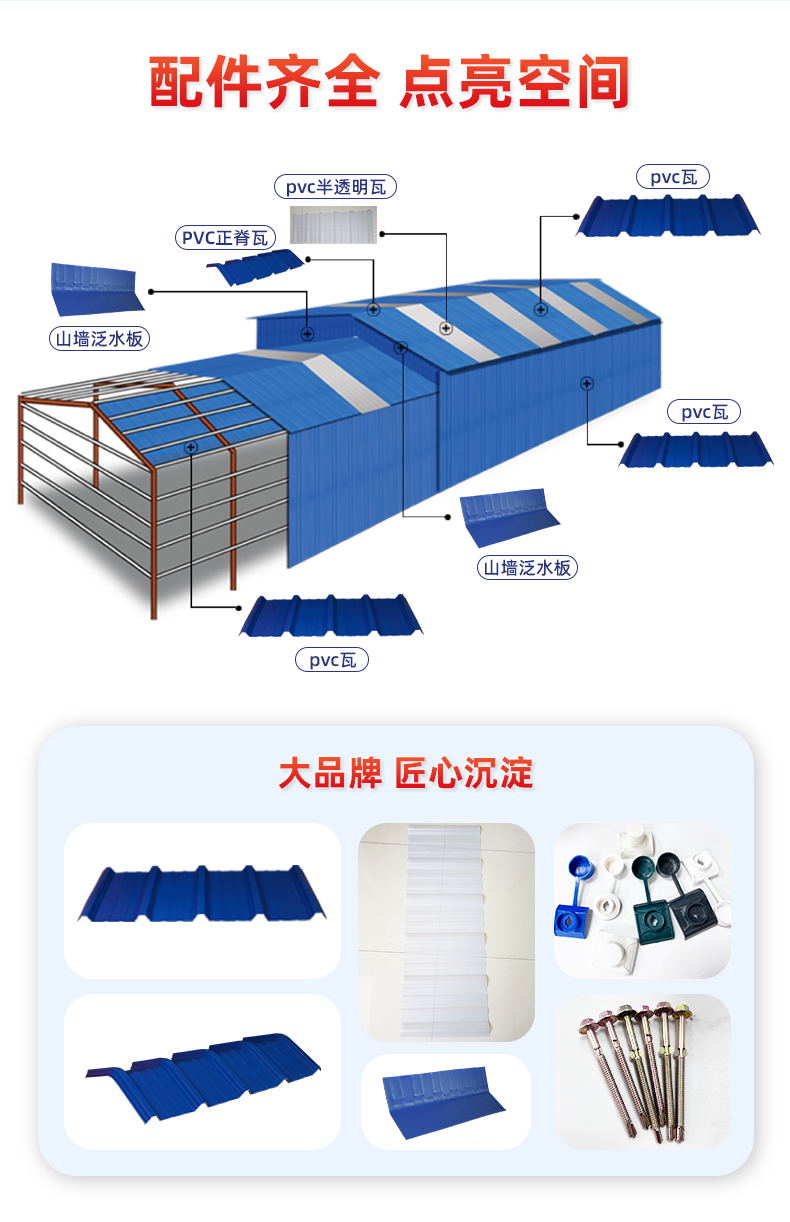

Applications: High-end industrial buildings, warehouses, farmers’ markets, market aisles, residential buildings, mobile homes, flat-to-sloped roof conversion projects, sunshades, rain canopies, carports, etc.
It works especially well in corrosive environments such as ceramic factories, smelters, dyeing and printing plants, chemical plants, and fertilizer plants!
1130 PVC trapezoidal tile
[Product Characteristics
Offers a 25-year warranty and 10-year colorfastness.
pvc tiles/PVC tiles/ASA-PVC tiles are made of anti-aging scientific formula, with PVC as the main raw material and mixed with UV anti-ultraviolet extrusion, shielding extrusion, antioxidants, modifiers and other super weathering chemical materials. It is produced by European advanced co-extrusion technology. It can convert the UV light energy of sunlight into heat energy and release it, block the oxidization reaction between air and material and add shielding material in the core layer to prevent the penetration of light again, thus greatly extending the service life of the tile.
- Excellent corrosion resistance
As a modified plastic, it has the corrosion-resistant properties of plastic itself. It has no chemical reaction when immersed in alkali, salt, and acids up to 60% for 24 hours. Ideal for corrosive plants, acid rain prone areas and coastal areas.
- Good soundproofing
The composite co-extruded core layer shielding structure greatly reduces the spread of sound. In the wind, rainstorms and other external noise impact, has a very good noise absorption effect, than the color plate noise drop of more than 30dB.
- Strong fire resistance
The fireproof performance is tested by the national fire prevention department ≥ B1 level, which is a flame retardant material.
- Excellent water resistance
Dense and non-absorbent, large sheet area reduces roof seams.
- Excellent load resistance
It has good loading performance, and does not produce damage and breakage phenomenon in low-temperature areas under year-round snow accumulation. Tested using 2.0MM thick UPVC tile in the support spacing 600MM under the case of loading 100KG, tile will not produce cracks damage phenomenon.
- Excellent thermal insulation performance
The coefficient of thermal conductivity is 0.325W/M.K, which is about 1/310 of clay tile, 1/5 of cement tile and 1/2000 of color steel tile. At the same time, it is full-shading, which greatly improves the heat insulation performance. The experiment proves that the heat insulation effect is 3~4℃ lower than the color steel plate.
- Good impact resistance
Strong impact resistance. Tested: 1 kg steel ball dropped freely from a height of 3.0 meters without cracking.
- Particularly good insulation
It is an insulated product and will remain intact in the event of an accidental discharge. It is a safer alternative to metal tiles in thunderstorm areas and near high voltage lines.
- green
It does not contain asbestos and radioactive elements and is recyclable, which is fully in line with the requirements of green environmental protection.
It is made of PVC as the main raw material, mixed with UV resistant extruder, shielding extruder, antioxidant, modifier and other super weather resistant chemicals, and is produced by adopting advanced co-extrusion technology in Europe.
[Product Installation Recommendations]
-
- Thickness ≤ 1.3mm, pitch roof purlin span ≤ 600mm, gable roof purlin span ≤ 800mm.;
-
- 1.3mm< Thickness≤ 1.8mm, Pitched roof purlin span≤ 800mm, Gabled roof purlin span≤ 900mm;
-
- 1.8mm< Thickness≤ 3.0mm, Pitched roof purlin span≤ 900mm, Gabled roof purlin span≤ 1000mm;
-
- Middle wave, small trapezoidal wave transverse lap must take 2 waves, longitudinal lap length >300mm.;
-
- If self-tapping screws are used for fixing, the holes must be pre-drilled and the diameter of the holes must be larger than the diameter of the fixing screws by 2~3mm.
-
-
- Note: The span of purlin is related to the use temperature of the product, the higher the use temperature, the smaller the span of purlin should be, otherwise the product is easy to deform.
-
-
